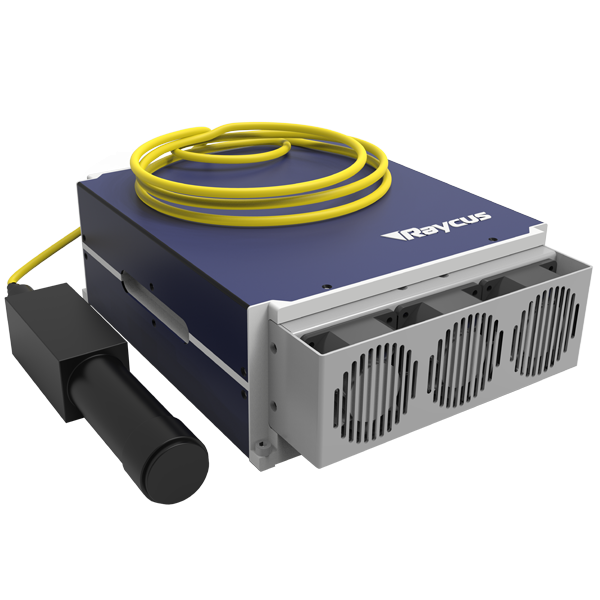

120W MOPA Fiber Laser

Characteristics Of 120W MOPA Fiber Laser

Technical characteristics

• Uniform Control Interface
• Wide Modulation Frequency Range
• Variety of Pulse width
• Customize Pulse Width
• Available first pulse
• High Beam Quality
• Air Cooling System

Optical Properties

• Nominal output power: (W): 120
• Central wavelength: (nm): 1064
• Repetition frequency Range(kHz): 1-2000
• Output power instability: <3%

Output characteristics

• Output Beam Diameter(mm): 7±1
• M²:<1.5
• Polarization state: random
• Pulse Width Range(ns):10-350(Customizable)
• Max.Single Pulse Energy(mJ):1.5
• Delivery Cable length (m): 3(Customizable)

Electronic control characteristics

• Input power (V DC ): 24
• Power adjustment range (%): 0-100

Other characteristics

• Dimensions (mm ): 350*320*120
• Cooling method: Air-cooled
• Working temperature (℃ ): 0-40

Application of 120W MOPA Fiber Laser RFL-P120MX

• Film Cutting
• Anodic Aluminum Etching
• Colorful Marking
• Precision Marking
• Precision Cleaning
• Surface Heat
• Texturing Treatment
